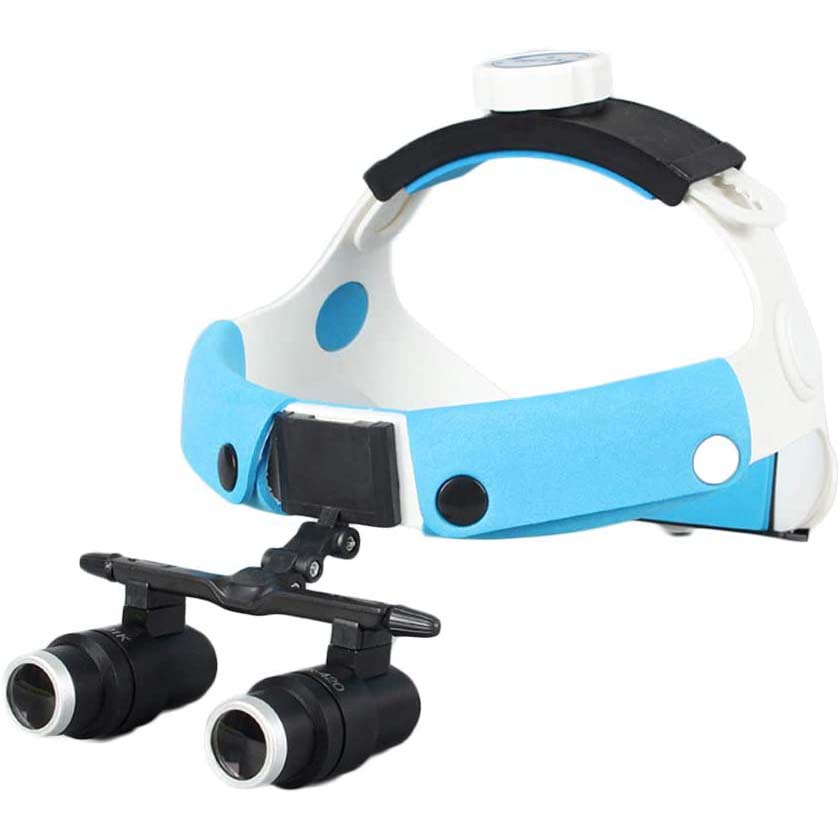

Binocular Headband Magnifier, professional
- Vendor
-
Ref: BINOCMAG-S4-2.5X-370MM
- Unit price
- per
(Single item price excluding VAT: £140.83)
| Magnification | Price (Inc. VAT) | Stock |
|---|---|---|
| 2.5X magnification | £169.00 | 4 |
| 2.5X magnification | £169.00 | 8 |
| 2.5X magnification | £169.00 | 1 |
| 3.5X magnification | £228.00 | 1 |
| 4X magnification | £250.00 | 2 |
| 6X magnification | £394.99 | 2 |
Free gift option with this item
| Magnification | Working distance | Reference | Price (Inc. VAT) |
|---|---|---|---|
| 2.5X magnification | 37cm working distance | BINOCMAG-S4-2.5X-370MM | £169.00 |
| 2.5X magnification | 42cm working distance | BINOCMAG-S4-2.5X-420MM | £169.00 |
| 2.5X magnification | 50cm working distance | BINOCMAG-S4-2.5X-500MM | £169.00 |
| 3.5X magnification | 37cm working distance | BINOCMAG-S4-3.5X-370MM | £228.00 |
| 4X magnification | 50cm working distance | BINOCMAG-S4-4.0X-500MM | £250.00 |
| 6X magnification | 42cm working distance | BINOCMAG-S4-6.0X-420MM | £394.99 |
Pickup available from Quicktest (WD18 8JA)
Email us
or call on 01923-220206 for appointment.
Summary
This is the type used by surgeons, instead of 'simple' lenses, they have a pair or very high quality tiny telescopes. This enables a unique combination of high magnification with a long working distance (choose the one that is best for you).
Guarantee: 1 year.
Detail
The optical quality of these is so good that you do not need high magnification, see our guide. As regards the working distance, sit at your workplace, sit comfortably upright, see how far it is from your eyes to where your hands are working.
Q. Why are these so expensive?
A. Because the optical quality is so good.
Q. Why are these so cheap?
A. Because they are not custom-made for your eyes, you might have to spend several minutes collimating (setting them up) these for your eyes - though you only have to do this once. That's why I call them. "surgeons-type", actual surgeons will spend £2000.00 on a model that is fixed (no adjustments) to line up with their eyes.
That said, these are a good choice for dentists, who might not have the same budget as an operating theatre.
Further information
See information about (and reviews of) binocular (head-worn) magnifiers- especially the surgeons
Everything you need to know about magnifiers and magnification.
See information about (and reviews of) loupes (small high-power folding jewellers' magnifiers).
See a guide to magnifiers for the partially-sighted.
Video (electronic) magnifiers, video magnifiers compared.
Products: see pocket microscopes and phone microscopes, click here.
With most magnifiers* magnification and working distance are related. Download our Excel sheet, enter a magnification to see the resulting working distance, enter a working distance to see the resulting magnification.
* excluding surgeons-type, digital & phone magnifiers, and microscopes.
Free gift details
If you would like one of the following free gifts with this product, select one from “Select your free gift” above.
|
Magnifiers that clip to glasses - clip to spectacles, double, binocular stereo (RRP £3.90 ) |
|
READING MAGNIFIER, 80X80mm WITH 4 L.E.D. LIGHTS (RRP £7.50 ) |
|
A4 Page-Size Fresnel Magnifier (RRP £3.50 ) |
QUESTIONS & ANSWERS
Ask a Question-
Hello. I need magnification of some sort to help when working with my lathe and small milling machine in my home workshop. I also wear prescription glasses, and safety specs which fit over my glasses. Would the Binocmag-S4 surgeons type magnifier fit over my safety specs? Thanks.
To work best, the eyepiece of the magnifier has to be close to your eye. This works fine with spectacles but will probably not work with safety specs.
-
Hi I was looking at the 4X but think 3-4mm for depth/field of view seems tiny. Are you sure it would be this bad? Thanks.
Yes BUT this is a bit of a guess, measured by looking through it and using a tape measure not by doing mathematical calculations.
In practice it really isn't that bad because, unlike a handheld magnifier, you instinctively keep moving you head to keep it in focus (though that doesn't help for large objects such as gluing the side of a vase...it's not meant for large objects!).
These 'surgeons-type' lenses are not 'simple' lenses, they are mini-telescopes, so the optics work slightly differently from a 'simple' lens; another difference is that the magnification appears to be far higher than a 'simple’ 4X lens.
-
What is the depth of field and field of view with these lenses?
It depends on the magnification and I dont' know exactly (I'd have to measure every single one), but approximately: a couple of cm for the weakest magnifications, probably 3 or 4mm for the strongest magnfication, both for depth of field and field of view.
