Ultra violet in safe-box (longwave + shortwave + white )
- Vendor
-
Ref: UV-SW
- Unit price
- per
(Single item price excluding VAT: £43.75)
Stock: Available
Free gift option with this item
Pickup available from Quicktest (WD18 8JA)
Email us
or call on 01923-220206 for appointment.
Summary

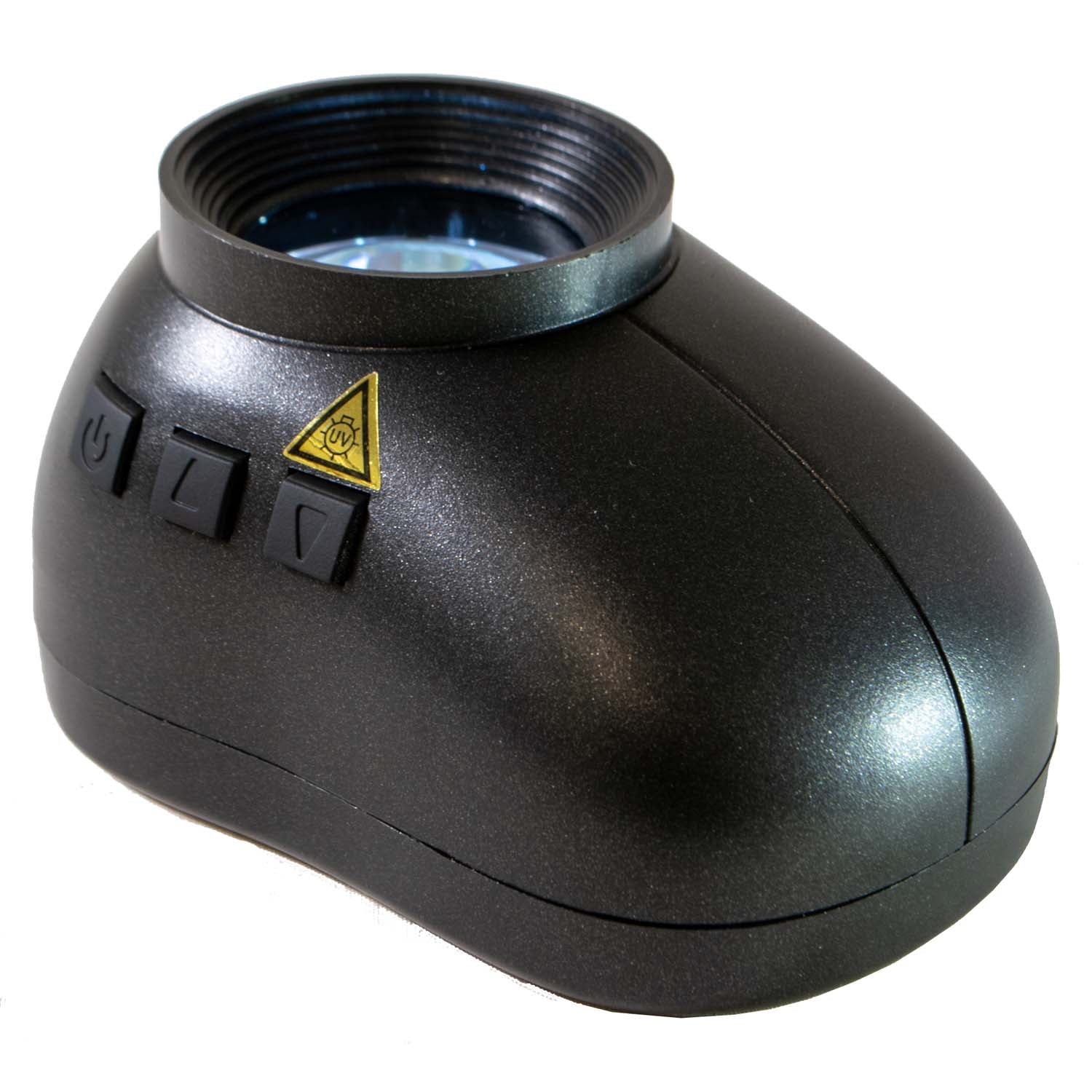

Shortwave UV light in a 'safe' box (to stop the light burning your eyes and a longwave UV light and an ordinary white light.
For examining gemstones, stamps and other small objects.
It can also be used for steralising small items of jewellery to make them safe from covid - but please read the explanation first.

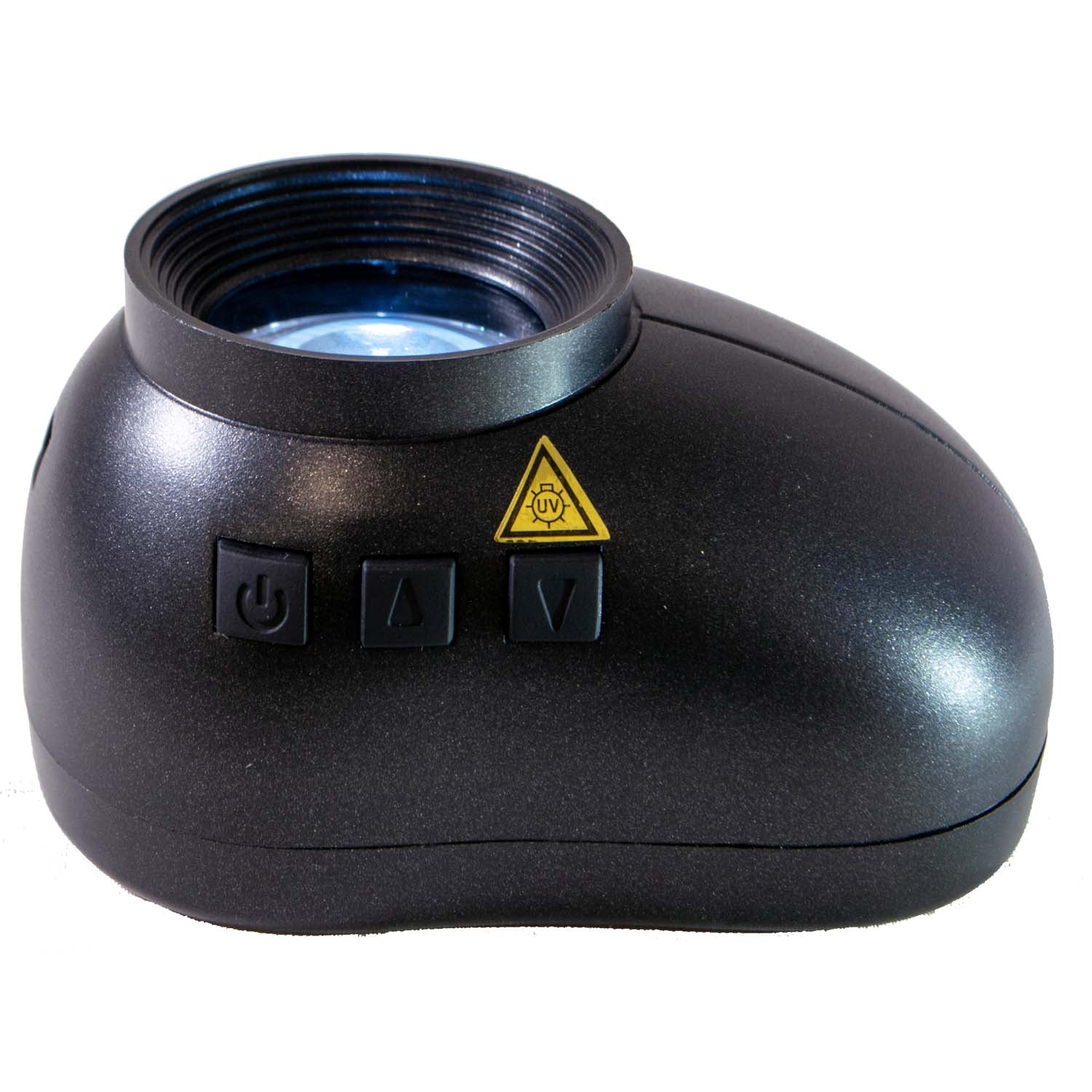

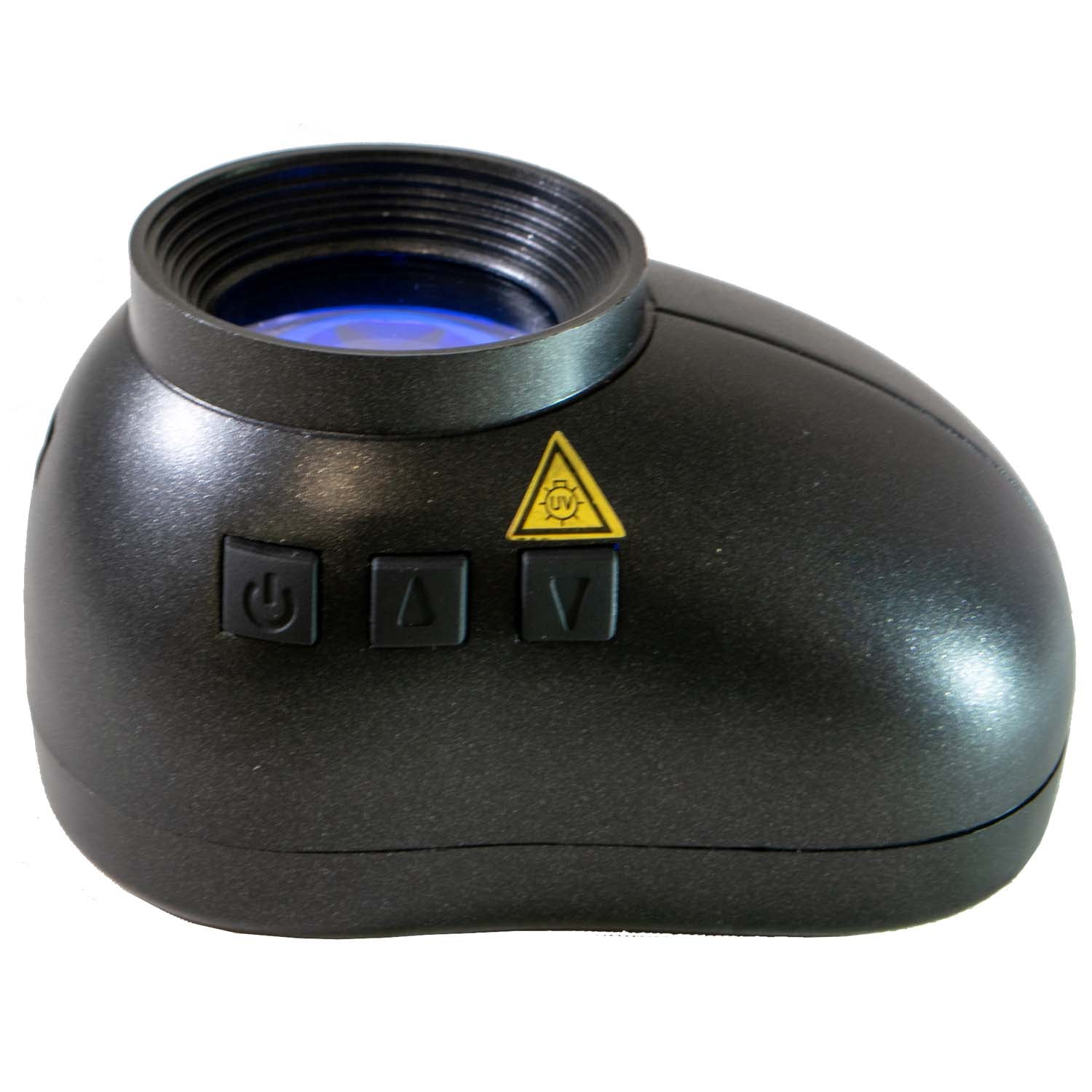

Can be switched to UV longwave, UV shortwave, or white light. To see the reaction under these three different lights it can also be set to 'cycle' automatically through all the modes.
Can be powered by batteries or mains.
INSTRUCTIONS: place your item on the table, place the UV lightbox over the top .
Read all about how UV light works and what it will detect (fascinating article!)
See photos of what you will see with the many models of UV light.
Detail
Lights:
- white light
- longwave (LED) 365nm
- shortwave (LED) 254nm
Lens: 30mm diameter, 10X magnification
External size: 95 X 65 X 52mm
Maximum samples size: 35 X 20mm
You can certainly fit larger objects but if they are too large they will block the light, this is designed for gemstones or very small mineral samples...or stamps...or banknotes.
Power: 3 X AAA batteries
or any USB source (e.g. computer/mobile device/powerbank). USB lead supplied.
Also supplied, a mains plug with a USB socket, but it's a 2-pin plug so you will need a 2-pin adaptor (not supplied).
Free gift details
If you would like one of the following free gifts with this product, select one from “Select your free gift” above.
|
UV-marker (RRP £1.90 ) |
|
Pocket Microscope with light, 60X + UV light + free iPhone adaptor for iP5 (RRP £9.50 ) |
|
UV security UVmarker with UV light in cap (RRP £4.90 ) |
QUESTIONS & ANSWERS
Ask a Question-
Hi, I would want to examine stones in rings, will it fit over a ring box or similar. Thanks!
Fine to examine stones in rings, but no room to fit a ring box (unless it's a very small box) - see product description: "Maximum samples size: 35 X 20mm. You can certainly fit larger objects but if they are too large they will block the light, this is designed for gemstones or very small mineral samples...or stamps...or banknotes" .

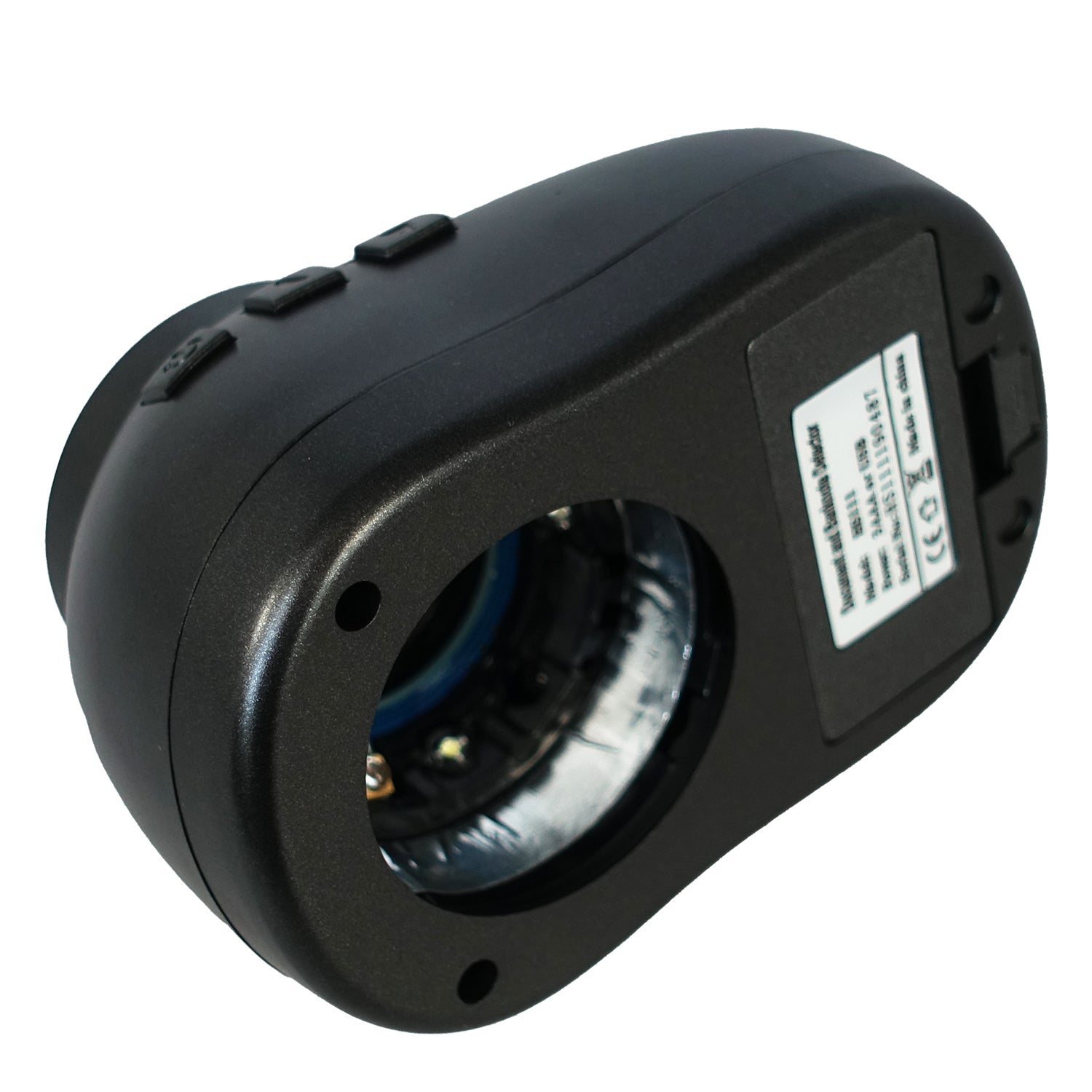

Also see photo of the underneath of product.
-
Can I see a picture of the underside to see how it would cover GB definitive postage stamps? As I often have to put a proved example next to another to see if it is PCP or ACP etc. Also does the mains adapter have a UK 3 pin plug come with it, I do not quite understand the bit about a 2 pin adapter, sorry I'm getting on in age and my existing UV light (SW & LW) is about 50 years old and plugs directly into the mains with a 3A fuse.
If you go to the product on our web site you will see that I've added a picture of the underside.
It comes with a charging cable for USB, that means it will work with anything with a USB socket: computer, mobile device and, increasingly, everyday appliances such as table lights. A mains plug with a USB socket is provided but it's a round-2-pin plug so you will need a 2-pin adaptor. But it works fine with batteries!
-
Do I need protective glasses when use the uv safe box?
No you don't need protective glasses.
Switch it to white light, turn it upside down, you can see the LEDs.
Switch it to Longwave UV, turn it upside down, you can see the LEDs.
Switch it to Shortwave UV, turn it upside down, you CANNOT see the LEDs because they are set inside the edge of the unit and reflect off a mirror. -
What are the internal dimensions? How is it to be used as a practical gem/jewellery UV tester?
Maximum (realistic) sample size: 35 X 20mm. You can certainly fit larger objects but if they are too large they will block the light, this is designed for gemstones or very small mineral samples ...or stamps.
We can’t help you with “using UV light as a diagnostic tool in gemstone identification” – that is more complicated, you will need to research it yourself. Ideally you need to go on a practical course in gemmology to view different type of fluorescence and phosphorescence in gemstones under different wavelengths. -
Please can you advise if the wavelengths are 254nm and 365nm?
Yes, correct, as stated in the product description.
-
Is this product helpful in distinguishing amber from plastic ? I have read your fuller description re salt water and hot needles, but hope u will be possible. If so will this item work for me ? Thanks
No, you cannot use UV to distinguish amber from plastics.
